Definition of NO in Aviation
In aviation, NO represents the maximum structural cruising speed—a critical threshold that pilots must observe. The Federal Aviation Administration (FAA) defines it as the speed beyond which exceeding the limit load factor may cause permanent structural deformation to the aircraft.
Most general aviation aircraft can withstand approximately 3.8G for positive loads and -1.52G for negative loads. Transport category aircraft, including business jets, operate under more conservative limits: typically 2.5G for positive loads and -1G for negative loads.

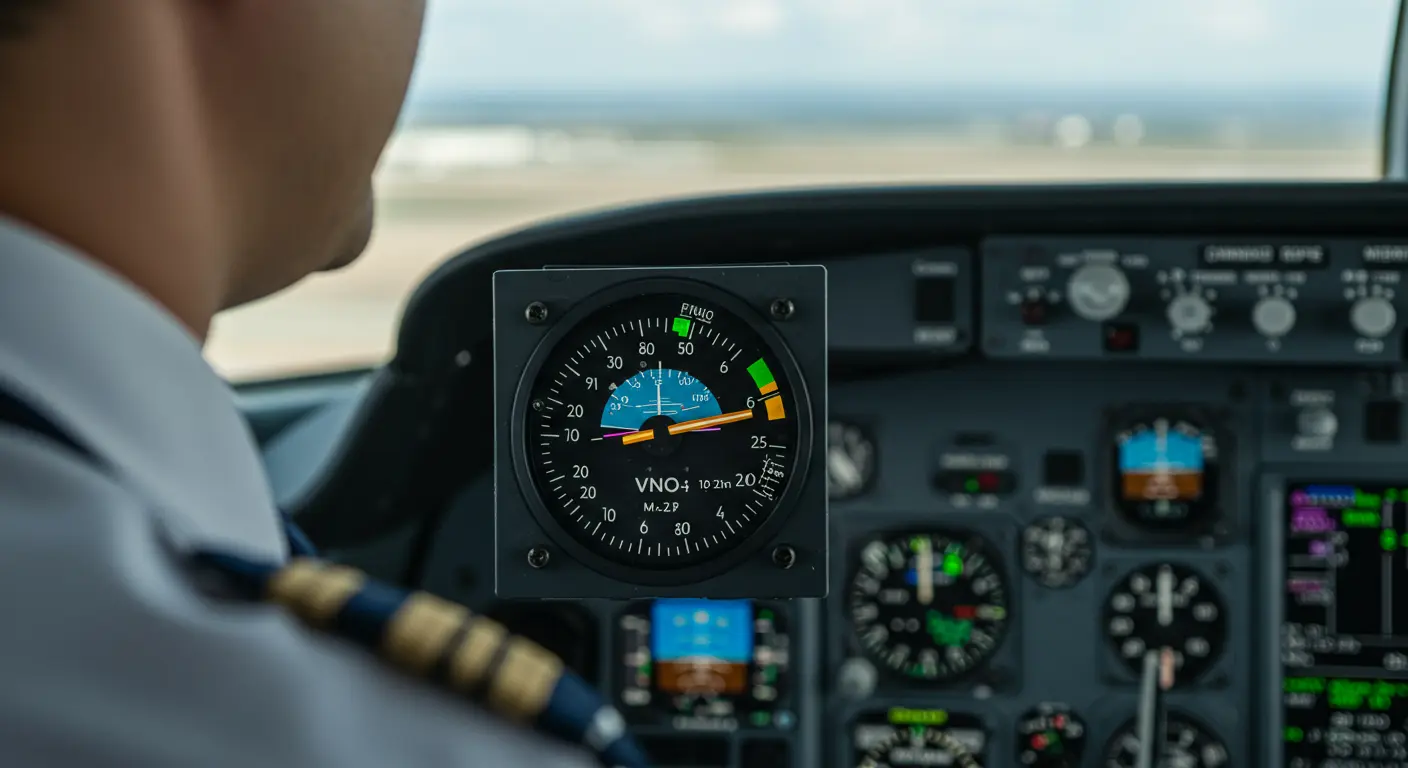

On the airspeed indicator, NO appears as the critical boundary between the green and yellow arcs. The green arc signals the normal operating range—where aircraft can be safely operated in all conditions, including moderate turbulence. Once airspeed enters the yellow arc beyond NO, caution becomes paramount. Pilots should maintain these higher speeds only in smooth air conditions.
Importance of NO Speed
NO serves as a critical safety parameter, defining the maximum speed for cruising in potentially turbulent air without risking structural damage. This fundamental reference point requires thorough understanding by every pilot.
NO provides an essential buffer between normal operating speeds and those where structural failure might occur during high-speed flight. By staying at or below NO, pilots maintain a vital safety margin that protects the aircraft’s structural integrity. This proves particularly important when encountering unexpected turbulence or making control inputs.
Manufacturers determine NO during flight testing and certification, overseen by authorities like the FAA or EASA. This process verifies the aircraft can operate safely by confirming its structural limits through tests that include:
-
Static load testing
-
Fatigue testing
-
Flutter testing
-
Gust response testing
While aircraft can safely fly at NO, the optimal cruise speed is often lower. Several factors influence this decision:
NO in the Hierarchy of V-Speeds
NO stands as a pivotal V-speed, marking the crucial transition from the normal operating range (green arc) to the caution range (yellow arc) on the airspeed indicator.
Within the V-speed hierarchy, NO occupies a strategic position between normal operations and critical speed limitations. Below NO lie essential speeds like VS1 (stalling speed with flaps retracted), which marks the green arc’s beginning, and VS0 (stalling speed in landing configuration). These lower speeds define minimum safe operating thresholds for different aircraft configurations.
Above NO begins the yellow arc—the caution range where aircraft can only be safely operated in smooth air. At this range’s upper limit sits VNE (never exceed speed), marked by the ominous red line on the airspeed indicator. VNE represents the absolute maximum speed beyond which structural failure becomes likely, regardless of air conditions.
The relationship between NO and VNE deserves particular attention. Exceeding NO increases risk, especially in turbulent conditions, but doesn’t necessarily trigger immediate structural failure. However, it does heighten the likelihood of exceeding the aircraft’s limit load factor during turbulence encounters or abrupt control inputs.
How NO is Determined
Determining NO involves a rigorous process conducted by aircraft manufacturers during design and certification phases. This speed emerges from extensive flight testing and engineering analysis to ensure aircraft safety across various operating conditions.
Regulatory authorities like the Federal Aviation Administration (FAA) in the United States or the European Union Aviation Safety Agency (EASA) establish standards governing these testing procedures. These standards ensure NO falls within the aircraft’s proven structural limits and overall performance envelope.
Engineers determine NO by considering several key factors:
-
Expected turbulence levels during normal operations.
-
The aircraft’s established limit load factors.
-
Safety margins to account for manufacturing variations and aging.
Once established, NO becomes a permanent operating limitation—providing pilots with an essential visual reference for safe operations.
Flying at NO Safely in Airplanes
Flying at NO requires proper judgment and technique for safe operations. While aircraft are certified for this speed, pilots must observe several important considerations and practices.
Pilots should only approach NO in smooth air conditions. Since NO represents maximum structural cruising speed, operating at this threshold in turbulence significantly increases the risk of exceeding the aircraft’s limit load factor—potentially leading to structural damage. When encountering rough air or turbulence, prudent pilots reduce speed well below NO to maintain greater safety margins.
Continuous monitoring is essential when flying at or near NO. Pilots must carefully monitor both the airspeed indicator and outside conditions. Pay particular attention to outside air temperature—it affects true airspeed and the aircraft’s performance envelope. Make power and pitch adjustments smoothly to maintain desired speed without abrupt changes that could stress the airframe.
Control inputs are especially critical at higher speeds. Pilots should employ gentle, progressive movements rather than sudden or aggressive inputs that could significantly increase structural loads. This proves particularly important for roll and pitch controls, where abrupt movements at high speeds can significantly amplify wing loading.
Always consult the aircraft’s Pilot’s Operating Handbook (POH) or Aircraft Flight Manual (AFM) for specific performance charts and cruise speed recommendations. These documents provide manufacturer guidance on optimal cruise speeds for different conditions—which may be below NO for efficiency or comfort reasons.
Remember: NO is not VNE (never exceed speed). Aircraft are certified to fly at NO in smooth air, but doing so requires careful handling and gentle control inputs.
Consequences of Exceeding NO
Exceeding NO introduces significant risks to aircraft safety and structural integrity—particularly in anything less than perfectly smooth air conditions. Understanding these consequences is essential for pilots making informed airspeed management decisions.
The primary risk of flying above NO lies in the aircraft’s increased susceptibility to exceeding its limit load factor when encountering gusts or turbulence. At higher speeds, even moderate gusts can suddenly increase angle of attack and lift coefficient, generating forces that may exceed the aircraft structure’s design limits. This can result in various forms of structural damage—from minor deformations to catastrophic failures.
Common types of structural damage from exceeding NO in turbulent conditions include:
-
Wing bending beyond design limits
-
Skin buckling or rippling
-
Spar cracking
-
Fastener failures
The most severe consequences occur when aircraft approach or reach VNE (never exceed speed). At this point, the risk of catastrophic structural failure increases significantly. Components may fail without warning. Control surfaces can flutter or become ineffective. Pilots may lose aircraft control entirely. Unlike exceeding NO—which may cause progressive or partial damage—exceeding VNE can trigger immediate and catastrophic structural failure regardless of air conditions.
Beyond immediate safety risks, repeatedly operating above NO causes cumulative fatigue damage to the airframe. This reduces service life and increases maintenance costs.
Understanding the Green Arc in Airplanes
The green arc on an aircraft’s airspeed indicator represents the normal operating range—providing pilots with an intuitive visual guide for safe flight operations. This color-coded section conveys critical information about the aircraft’s performance capabilities and structural limitations at a single glance.
The green arc’s key safety feature is that the aircraft will stall before its limit load factor is exceeded. This provides a built-in safety margin for most flight phases.
However, the green arc doesn’t indicate a single recommended speed for all situations. Pilots must still choose appropriate speeds within this range based on specific flight conditions, aircraft weight, altitude, and mission requirements. The optimal cruise speed might differ significantly from the best rate of climb speed, even though both fall within the green arc.
Understanding the green arc’s significance and its relationship to NO empowers pilots to make informed airspeed management decisions throughout their flights. This knowledge ensures both efficiency and safety across various operating conditions.
